New Product

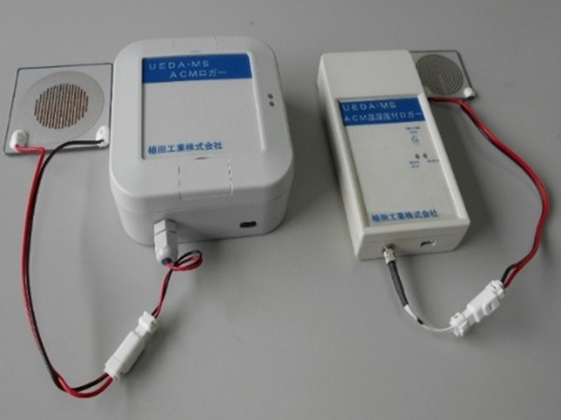

ACM Sensor Temperature & humidity Logger (Outdoor) & ACM Sensor Hot-wet Logger (Indoor)

Feature:

The measurement interval is 10 minutes / year, Record capacity of 60000 points It can measure rainfall, wetness, drying time, corrosivity factor of sea salt equivalent amount of adhesion and metal corrosion amount.
Waterproof, compact, lightweight, built-in recordable battery

Specification:

Outdoor

High Salt Environment Temperature & humidity meter
Dimension 100（Ｗ）×100（Ｈ）×40（Ｄ）ｍｍ
Decomposition 0.01ｎＡ～10ｎＡ

Indoor

Temperature & humidity meter
Dimension 65（Ｗ）×120（Ｈ）×22（Ｄ）ｍｍ
Decomposition 0.01ｎＡ～10ｎＡ
Thermometer Hygrometer
Sensor size 40（Ｗ）×40（Ｈ）×０．８（Ｄ）ｍｍ

Application:

Buildings built during the economic growth period have been aged more than 50 years ago. In order to ensure safety, it is necessary to grasp the speed of corrosion and to establish a maintenance plan. It is the atmospheric corrosion monitoring unit (sensor · logger) It can also be used as backing data which is a corrosion prevention environment.

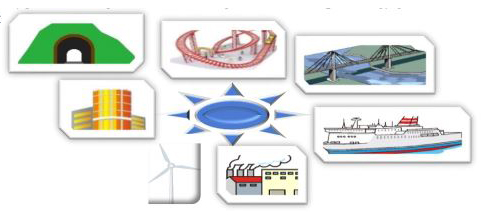

Example: Playground, bridge, tunnel, buildings, factories, ships, energy generation equipment

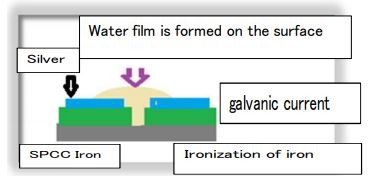

Principle:

With Atmospheric corrosion (corrosion protection) monitoring unit, you can infer the metal corrosion speed.

The corrosion evaluation of metallic materials in the atmosphere was the mainstream of the long-term exposure test of 10-20 years and the visual observation of metal material specimens. Using the ACM sensor with electrodes, it is now possible to infer metal corrosionpeeling by measuring the corrosion environment factor and metal corrosion amount of precipitation, wetting, drying time, sea salt equivalent adhesion.
Corrosion prevention environment survey, utilizing the environment free from condensation as empirical data, appeal for safety and security.

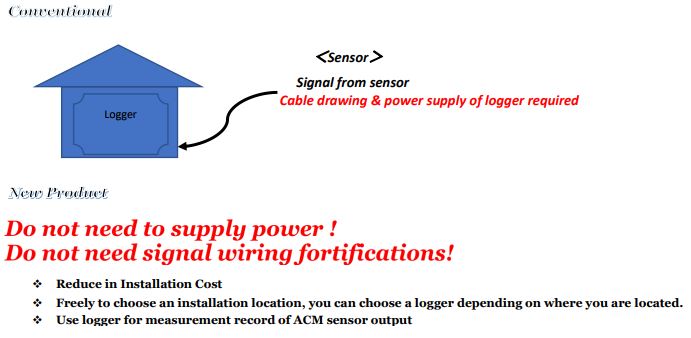

Installation : Conventional vs NEW!

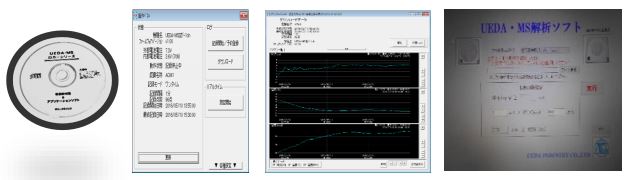

Measurement record reservation, monitoring, aggregation with dedicated application Analysis (Corrosion Speed: Total Electricity)
